About the Tadano GT-600EX

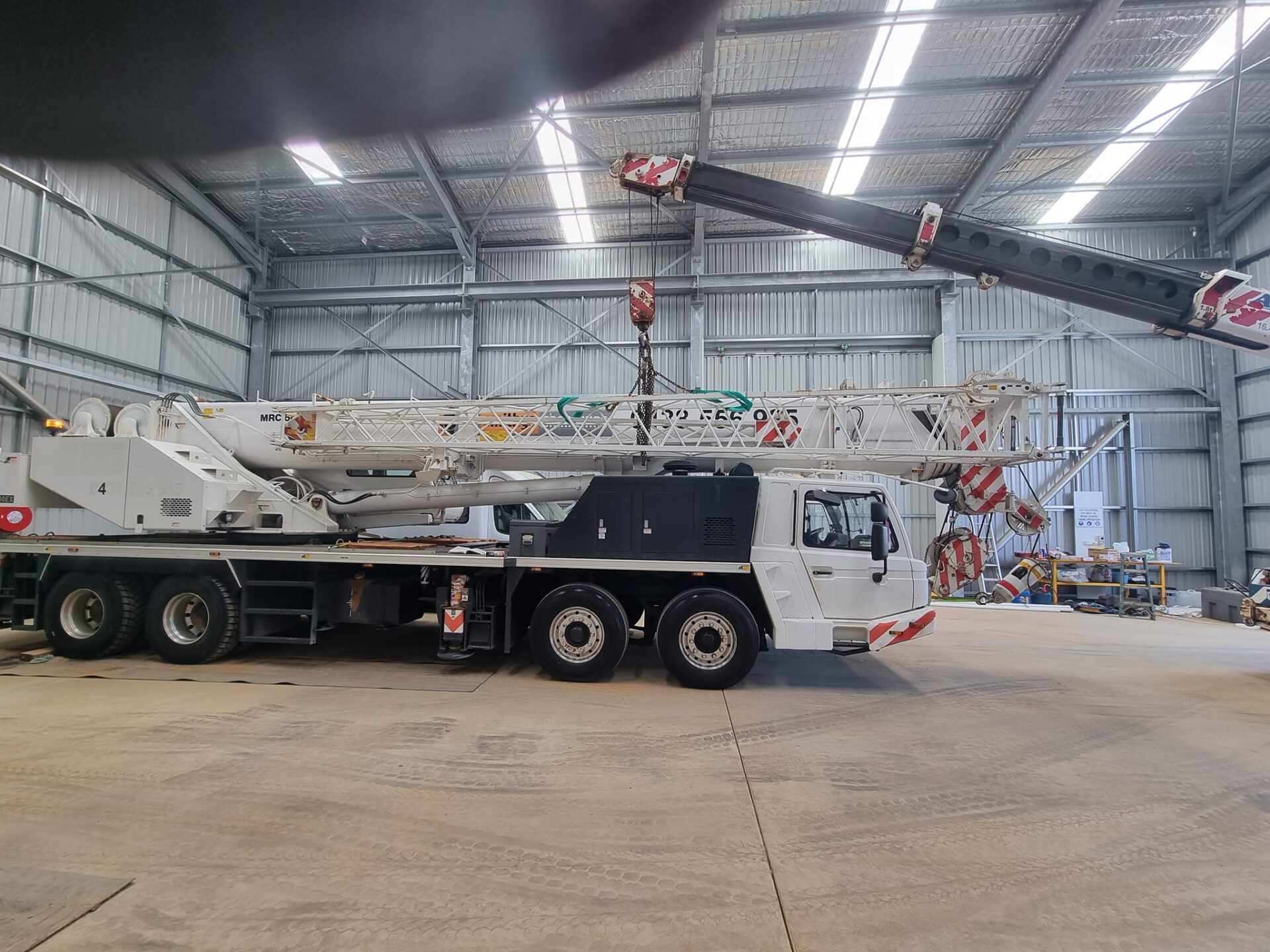

The Tadano GT-600EX is a highly capable hydraulic truck crane with a maximum lifting capacity of 60 tonnes. Equipped with a five-section, full-power telescoping boom that extends from 11 to 43 metres, offering exceptional reach and versatility for a wide range of lifting tasks.

The crane features advanced hydraulic systems, including dual variable piston pumps and a tandem gear pump, ensuring smooth and precise operation. The GT-600EX also includes Tadano’s Automatic Moment Limiter (AML-C) for enhanced safety, allowing operators to monitor crucial parameters like boom angle, length, and load capacity in real time.

With a robust yet lightweight boom design made of high-tensile steel, the GT-600EX provides both strength and agility, making it ideal for demanding job sites.

Key Features

Max Boom Length: 43.0 m
Max Radius: 42.3 m
Max Hook Height: 43.1 m

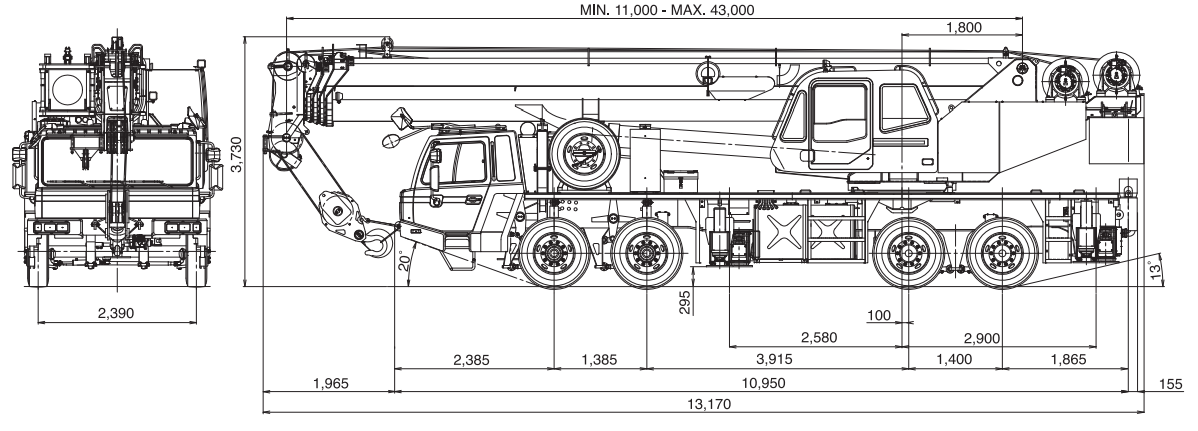

Width: Approx. 2,820 mm
Capacity: 60,000 kg at 3.0 m

Technical Data

Max Load Capacity
60,000 kg at 3.0 m
Boom Fully Retracted Length
11.0 m
Boom Fully Extended Length
43.0 m
Jib Length
8.8 m and 15.2 m
Engine Model
Daimler OM457LA
Overall Width
Approx. 2,820 mm
Overall Height
Approx. 3,730 mm
Gross Vehicle Mass
Approx. 41,500 kg
Front Axle Gross Mass
Approx. 16,000 kg
Rear Axle Gross Mass
Approx. 25,500 kg
Max. Travelling Speed
Computed 84 km/h
Gradeability (tanθ)
Computed 58 %
Boom Extension Speed
32.0 m in 135 s
Jib Slewing
2-staged slewing around boom extension
Jib Type
Triple Offset (5° / 25° / 45°)
Elevation Speed
2° to 81° in 76 s
Single Line Pull
54.9 kN
Single Line Speed
139 m/min. (at the 4th layer)
Wire Rope
Spin-resistant type
Wire Rope Diameter x Length
19 mm x 235 m
