About the Liebherr LTM 1095 5.1

The Liebherr LTM 1095-5.1 is a versatile mobile crane, renowned for its high lifting capacity and exceptional reach. Equipped with a 58-metre telescopic boom, it delivers powerful performance across a range of applications, from construction to industrial projects.

This crane offers a maximum lifting capacity of 95 tonnes. The LTM 1095-5.1 is built with advanced technology, including Liebherr’s innovative VarioBase system, which enhances safety and flexibility by allowing the crane’s outriggers to be adjusted individually. Its all-wheel steering and compact design ensure excellent manoeuvrability, even in confined spaces. Whether lifting heavy loads or working at great heights, the Liebherr LTM 1095-5.1 provides reliable, efficient, and safe operation, making it a preferred choice for complex lifting projects.

Key Features

Max Boom Length: 58 m
Max Radius: 62 m

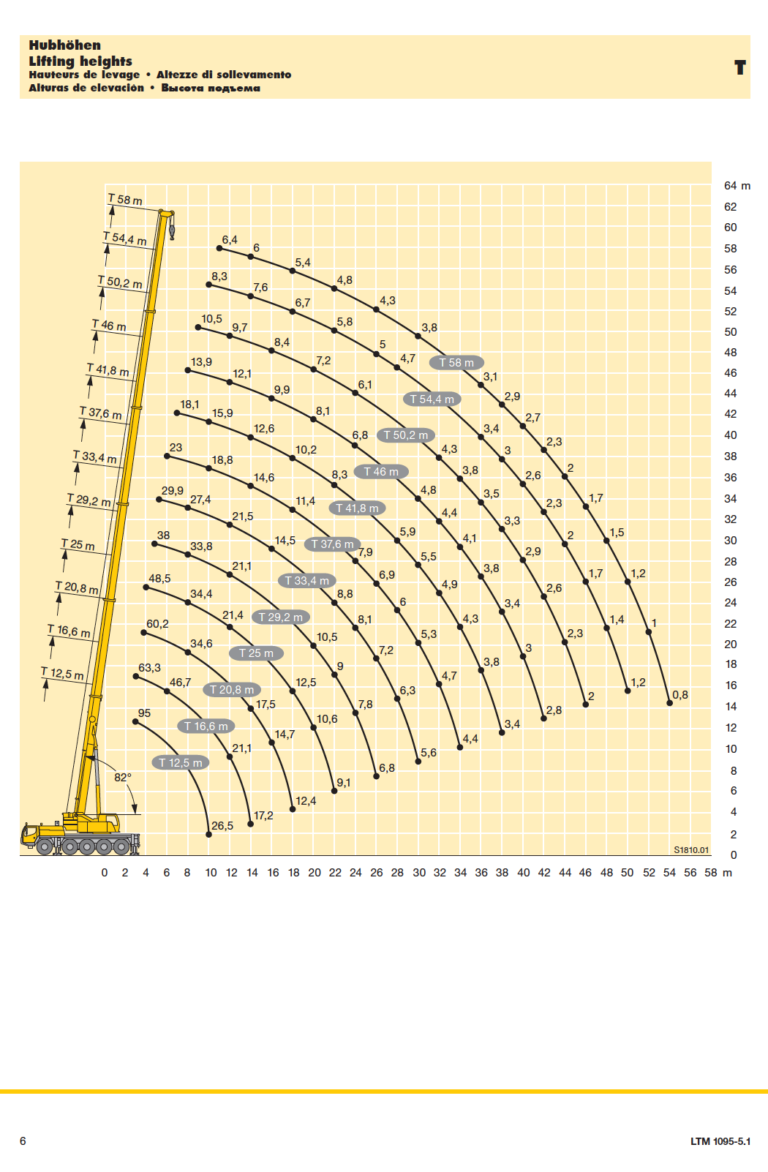

Max Hook Height: 82 m
Width: 9.9 m

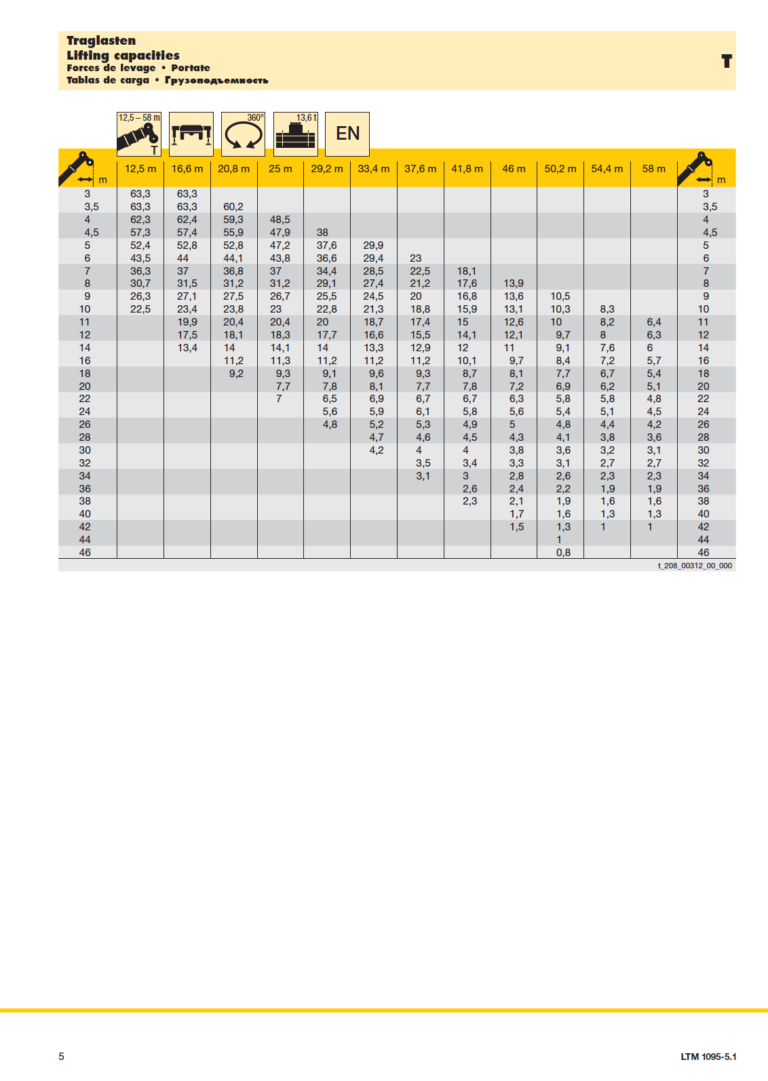

Capacity: 95 tons

Technical Data

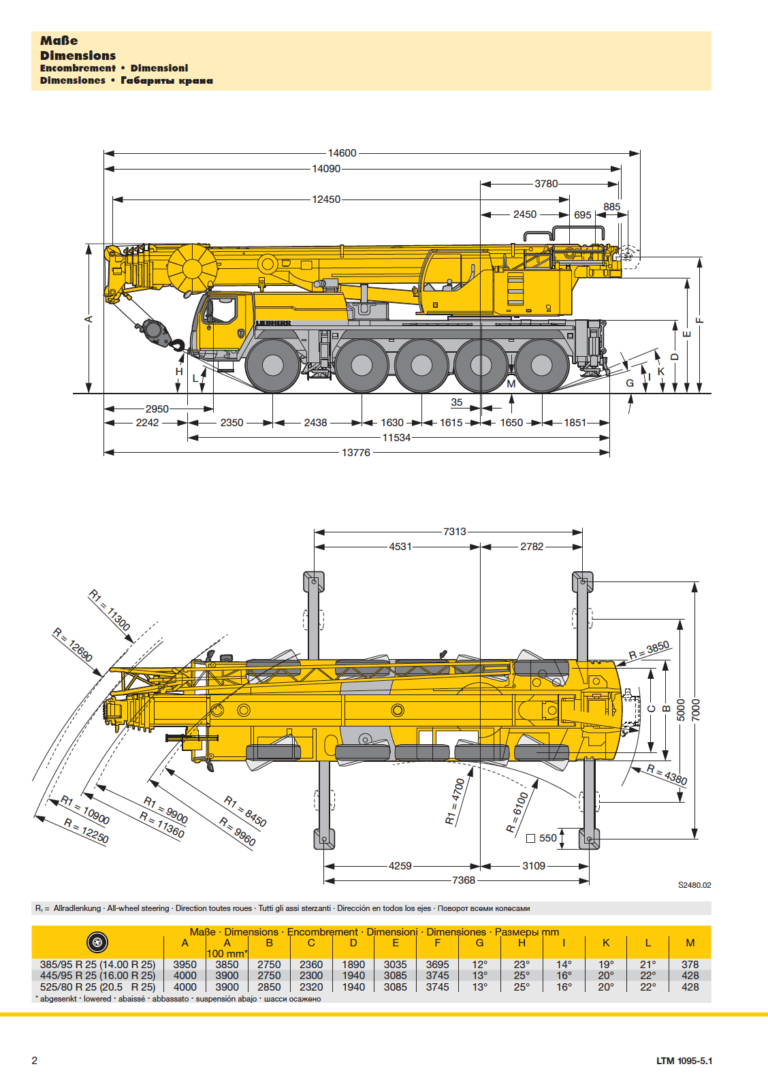

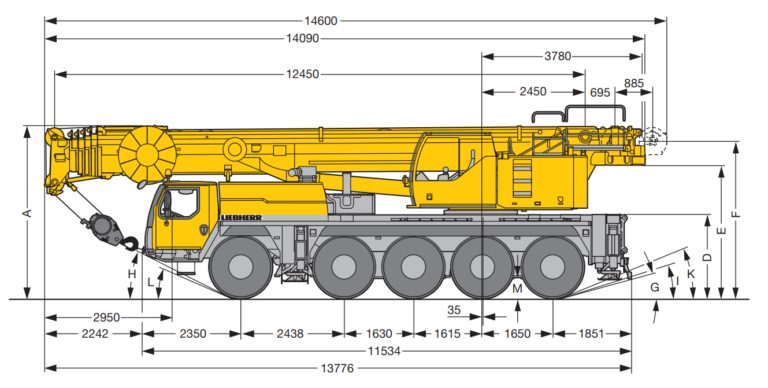

Boom Fully Retracted Length
12.5 m
Boom Fully Extended Length
58 m
Jib Length
10.5 m and 19 m
Engine Model
6-cylinder Liebherr turbo-diesel engine
Overall Width
2,750 mm
Gross Vehicle Mass
60 t
Max. Travelling Speed
75 km/h
Gradeability (tanθ)
60 %

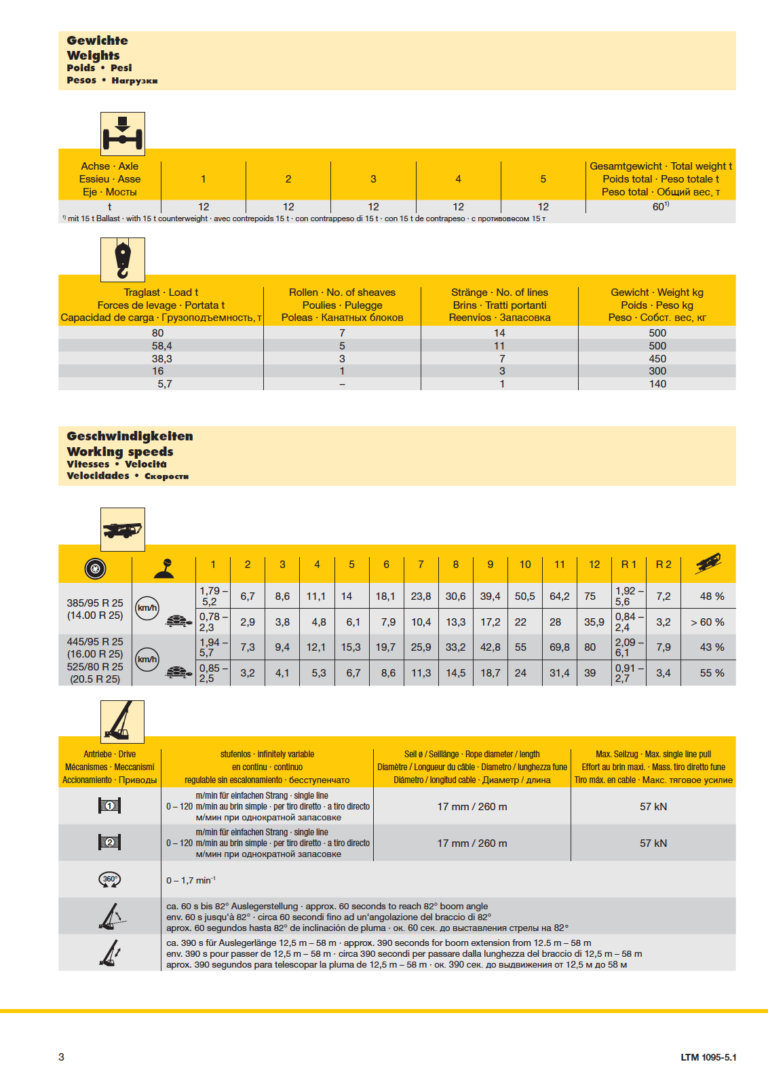

Boom Extension Speed
12.5 m - 58 m in 390 seconds
Jib Slewing Speed
1.7 rpm
Elevation Speed
82° in 60 seconds
Single Line Pull
57 kN
Single Line Speed
120 m/min
