Kato CR-200RF

Compact

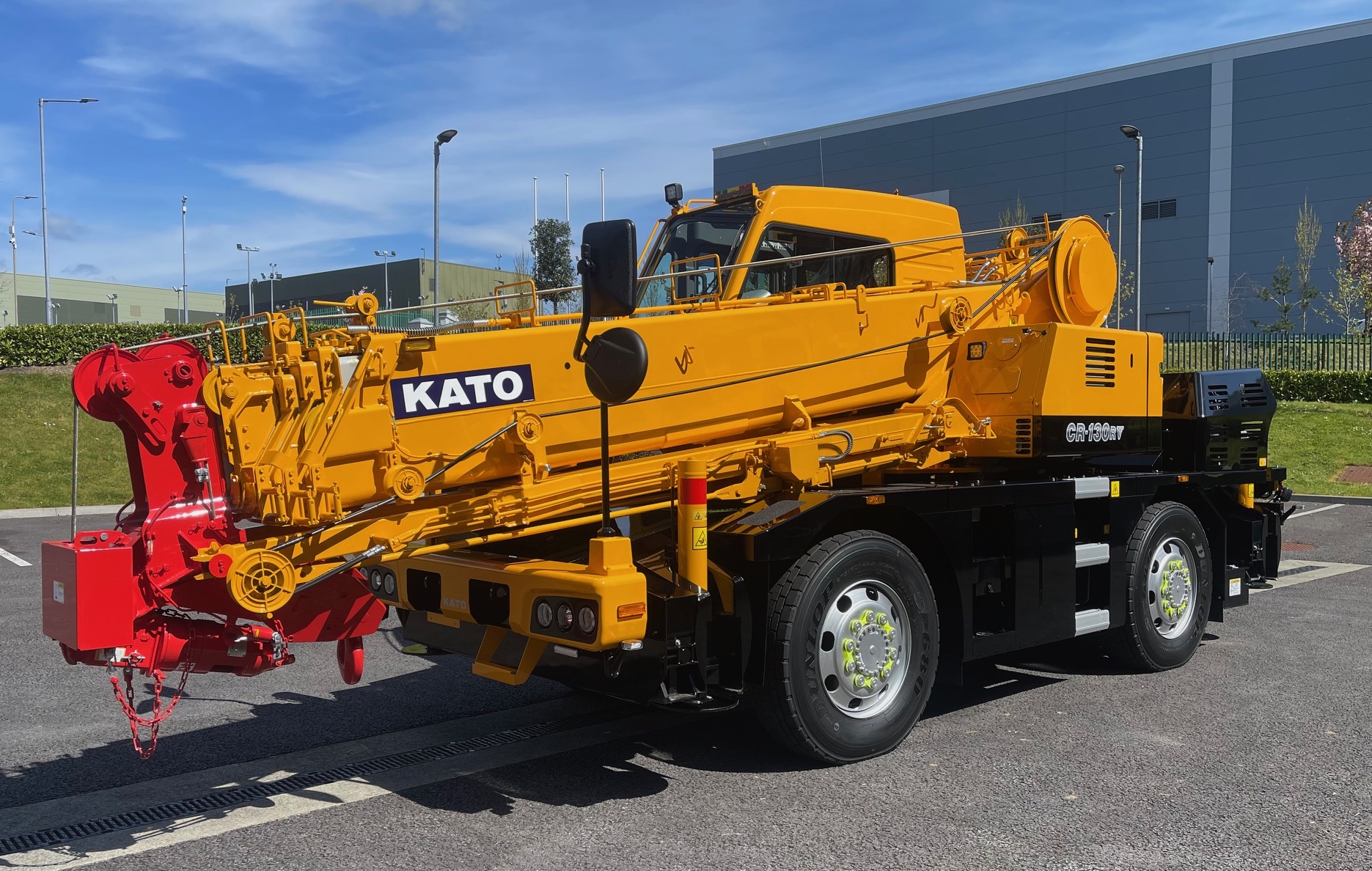

About the Kato CR-200RF

The Kato CR-200RF is a compact yet powerful city crane designed for versatile lifting operations in urban and confined spaces. With a maximum lifting capacity of 20 tonnes, it features a six-section, telescopic boom that extends from 6.5 to 28 metres, offering a maximum lifting height of 34.8 metres when equipped with a jib. The crane’s robust design ensures reliable performance, while its advanced hydraulic systems provide smooth and precise control.

The CR-200RF is equipped with a range of safety features, including an Automatic Crane System (ACS) ensuring safe operations in all conditions. Its compact size, combined with its 360-degree full range outrigger extension, makes it ideal for navigating tight spaces without compromising lifting capability.

Key Features

Max Boom Length: 28.0 m
Max Radius: 24.5 m
Max Hook Height: 34.8m (With jib)
Width: 2,290mm
Capacity: 20 ton

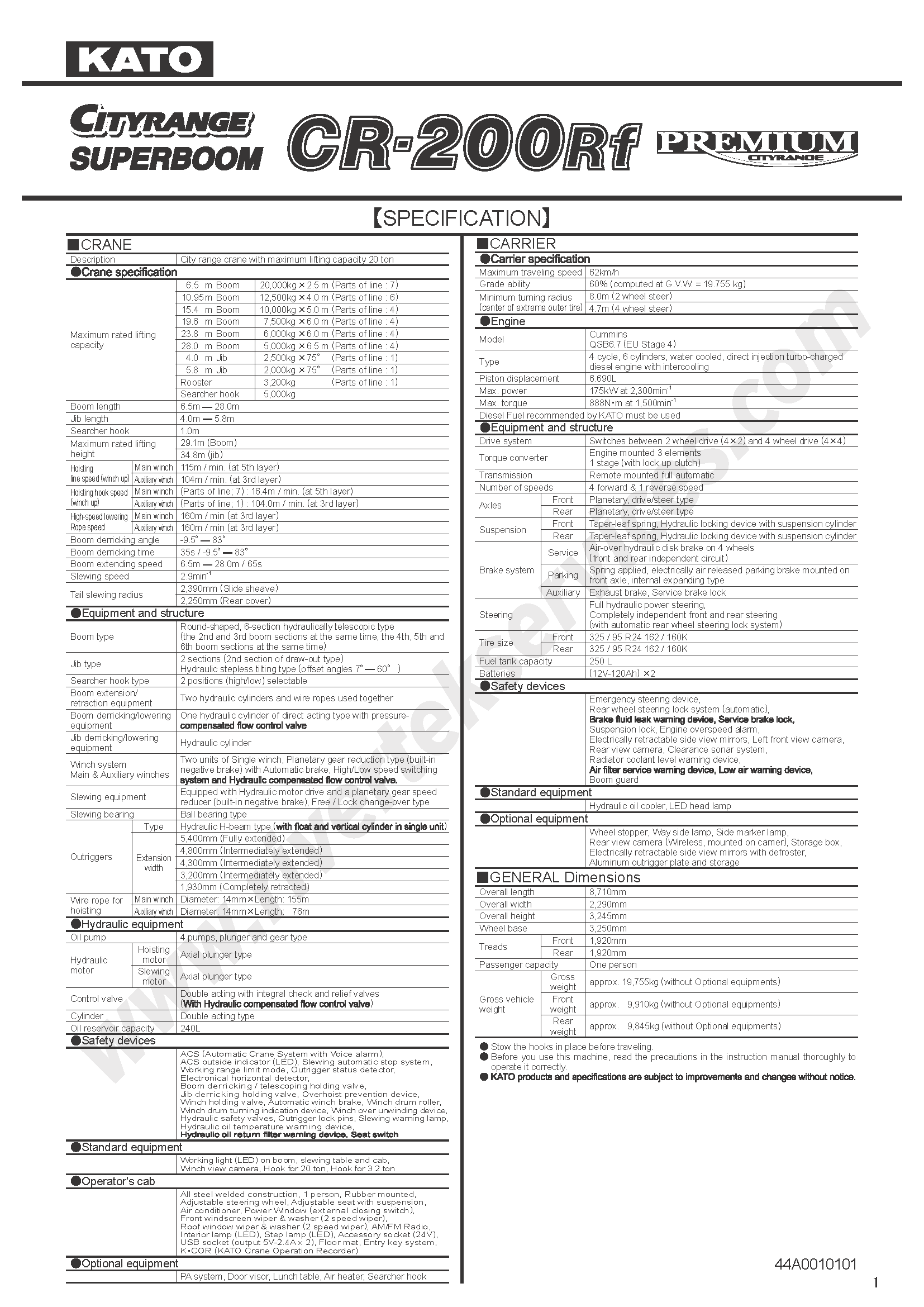

Technical Data

Max Load Capacity
20 ton
Boom Fully Retracted Length
6.5 m
Boom Fully Extended Length
28.0 m
Jib Length
4.0m - 5.8m
Engine Model
Cummins QSB6.7 (EU Stage 4)

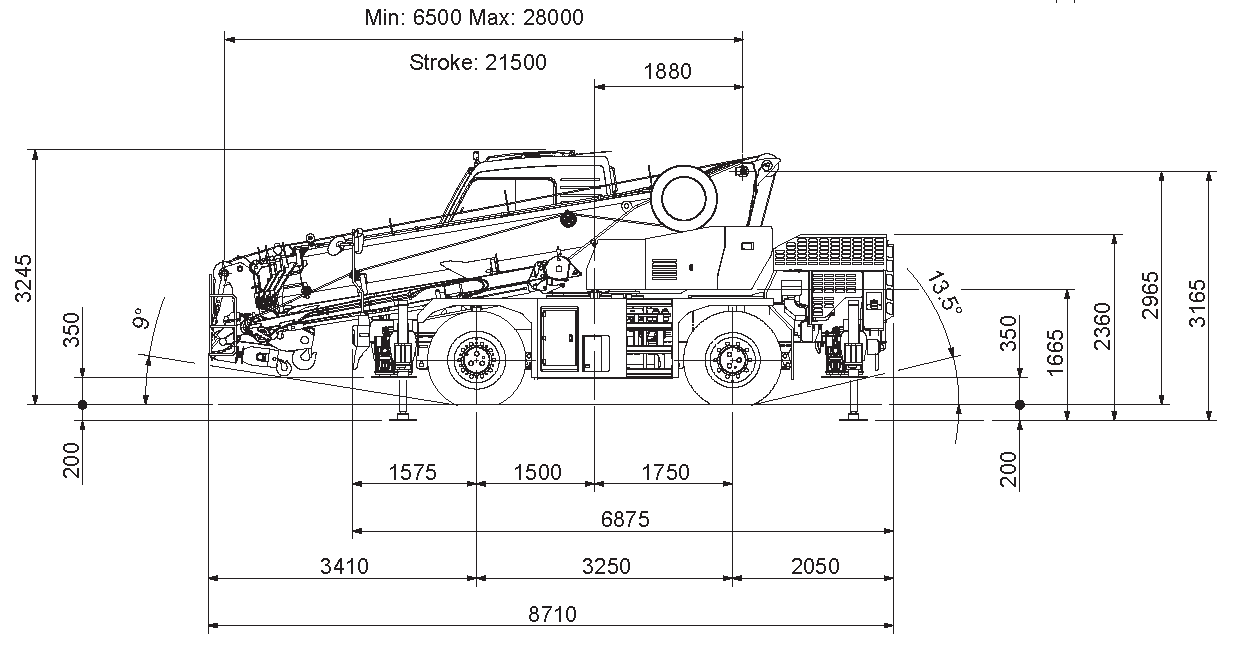

Overall Width
2,290 mm
Overall Height
3,245 mm
Gross Vehicle Mass
Approx. 19,755kg (without Optional equipments)
Front Axle Gross Mass
Approx. 9,910kg (without Optional equipments)
Rear Axle Gross Mass
Approx. 9,845kg (without Optional equipments)
Max. Travelling Speed
62 km/h
Gradeability
60% (computed at G.V.W. = 19.755 kg)
Boom Extension Speed
6.5m - 28.0m / 65s
Slewing Speed
2.9/min
Single Line Speed
(Parts of line; 7) : 16.4m / min. (at 5th layer)
Wire Rope Diameter x Length
14mm × 155m

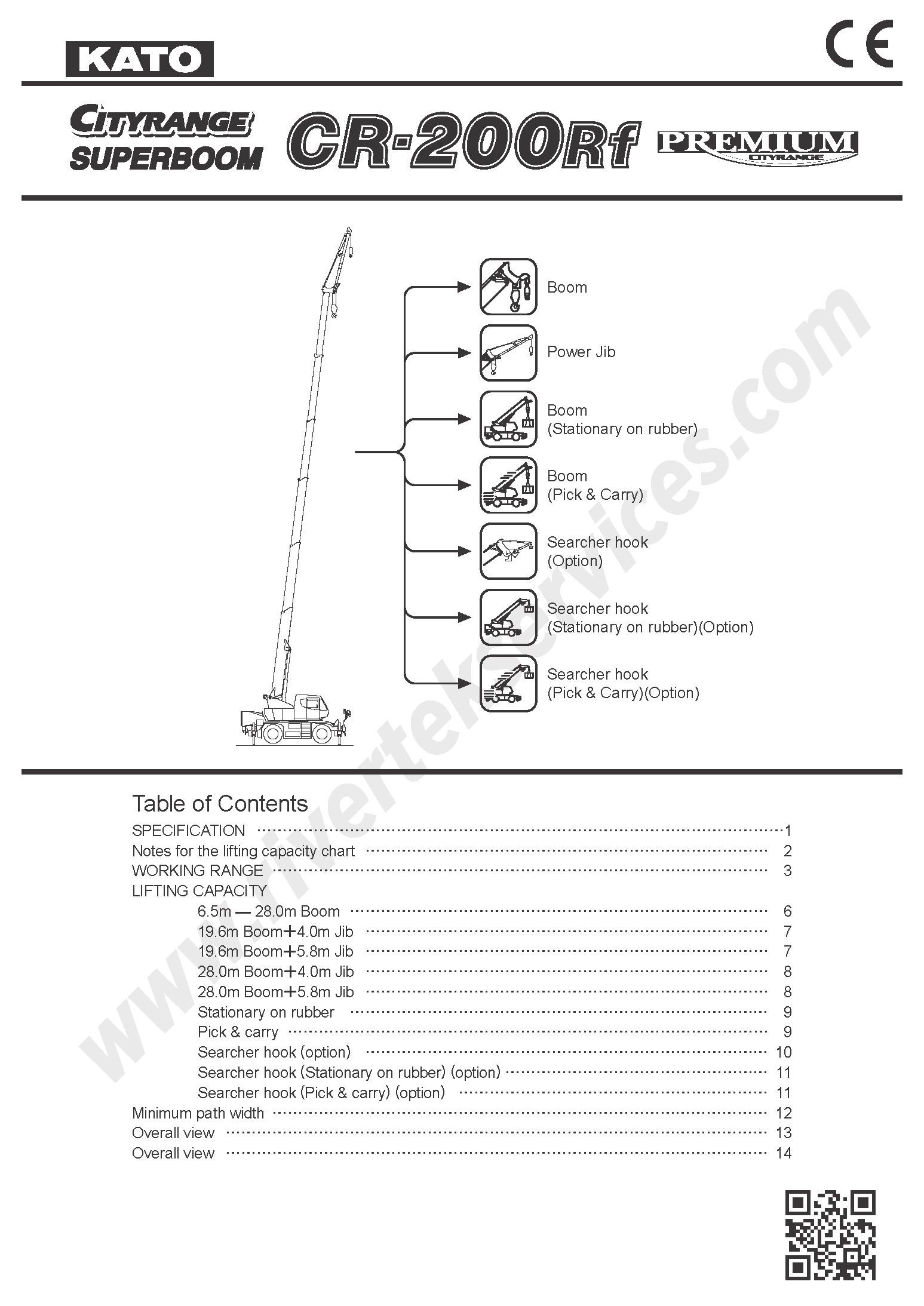

View PDF
